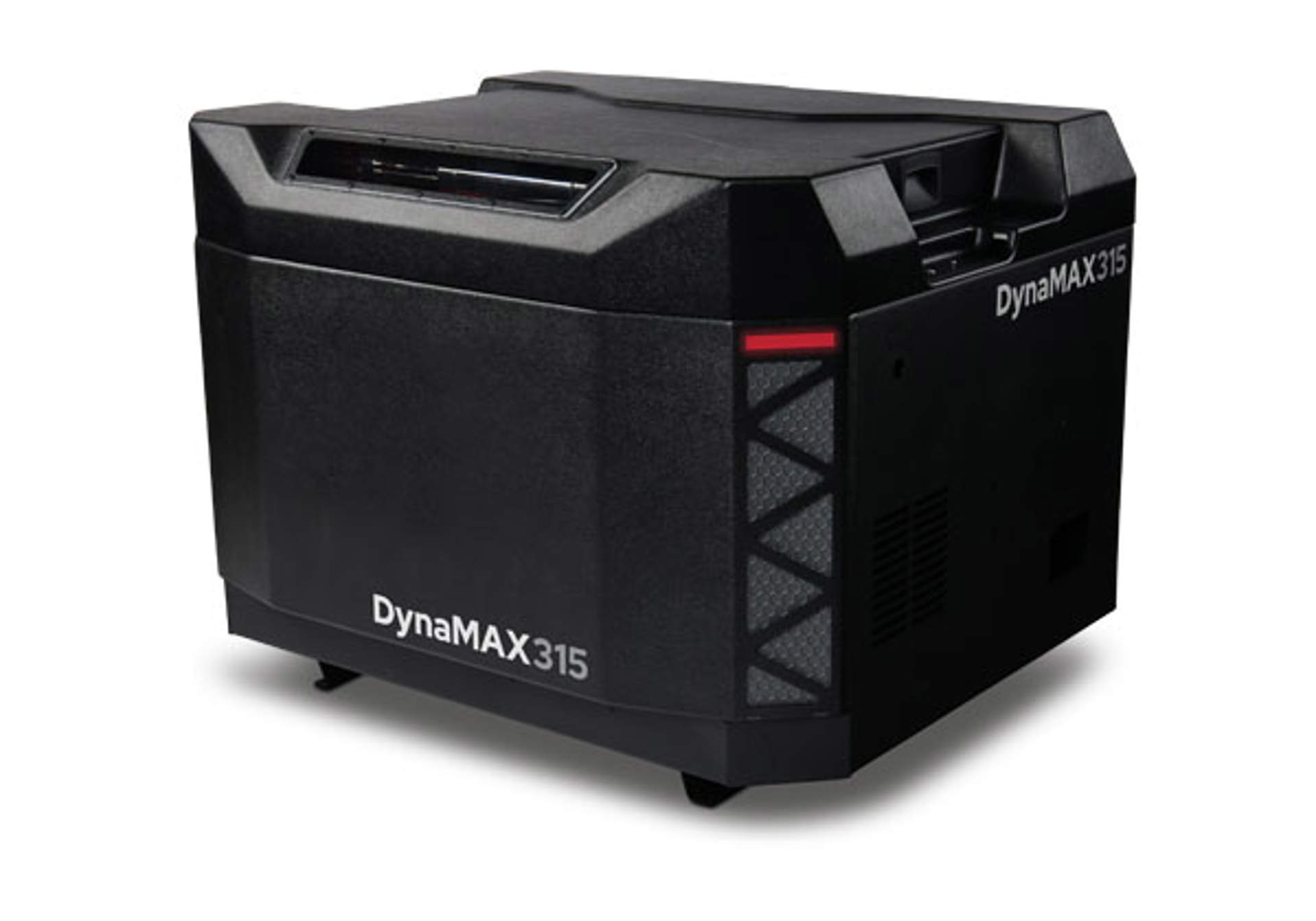

DynaMAX 3-series waterjet pumps
Available in three power levels, DynaMAX 315, 330, and 350 waterjet pumps deliver consistent cut quality at optimum cutting speeds and a design that simplifies service so maintenance is faster, easier, and less expensive. At the same time, DynaMAX pumps include features like fully integrated cooling for a smaller footprint that enables easy integration into small spaces.
Benefits

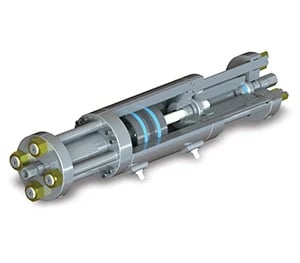

DynaMAX 3-series waterjet pumps include the next evolution of Hypertherm Associates’ Advanced Intensifier Technology™ (AIT). This technology eliminates soft, static high-pressure seals and incorporates industry-leading cartridge seal design, enabling rapid replacement of common consumables.

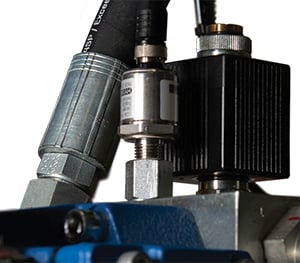

Standard on all DynaMAX 3-series pumps, closed‑loop proportional pressure control adjusts for ambient pressure and temperature, oil viscosity and hydraulic system wear parts, to deliver consistent quality at optimum cutting speeds.
With 20% fewer parts than earlier generations, DynaMAX 3-series pumps include user-friendly features such as common service components located front and center, quickconnect fittings, and an easy access bleed‑down valve, to make maintenance faster, easier, and less expensive.
Advanced Intensifier Technology simplifies system maintenance

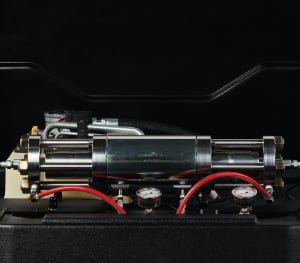

Hypertherm Associates' DynaMAX 3-series pumps incorporate cartridge seals, enabling rapid replacement of common consumables, leading to quicker return to service.

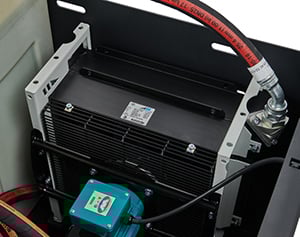

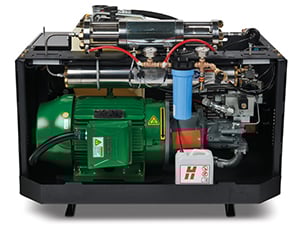

Smart industrial design, including fully integrated cooling, allows a reduced footprint, enabling integration into small, tight spaces.
Specifications
View the product brochure under the Resources section for the full specifications.
| Pump model number | DynaMAX 315 | DynaMAX 330 | DynaMAX 350 | ||||||
| 50 Hz | 60 Hz | 50 Hz | 60 Hz | 50 Hz | 60 Hz | ||||
| GENERAL | |||||||||
| Maximum output | 1.1 lpm (0.3 gpm) | 2.3 lpm (0.6 gpm) | 3.8 lpm (1.0 gpm) | ||||||
| Maximum orifice | 0.18 mm (0.007″) | 0.28 mm (0.011″) | 0.35 mm (0.014″) | ||||||
| Output pressure | Adjustable to 4,100 bar (60,000 psi) | ||||||||
| Pressure control | Closed loop proportional pressure control – standard equipment | ||||||||
| Bleed down valve | Air-actuated | ||||||||
| PUMP POWER | |||||||||
| Motor Power | 11.2 kW (15 HP) | 22.4 kW (30 HP) | 37.3 kW (50 HP) | ||||||
| Voltage | 400 V | 208–230 V | 460 V | 400 V | 208–230 V | 460 V | 400 V | 208–230 V | 460 V |
| Full load | 23 A | 45–41 A | 21 A | 44 A | 82–76 A | 38 A | 74 A | 136–124 A | 62 A |
| Main breaker | 30 A | 60 A | 30 A | 60 A | 100 A | 60 A | 100 A | 200 A | 100 A |
| Motor starter (options if more than 1 listed) |
Across-the-line | Wye-Delta Soft Start |
Across-the-line | Across-the-line Soft Start |
Wye-Delta Soft Start |
Wye-Delta | Wye-Delta Soft Start |
||
| PHYSICAL | |||||||||
| Width | 1,090 mm (43″) | ||||||||
| Length | 1,350 mm (53″) | ||||||||
| Height | 1,010 mm (40″) | ||||||||
| Operating weight | 775 kg (1,700 lbs.) | 825 kg (1,850 lbs.) | 925 kg (2,050 lbs.) | ||||||
