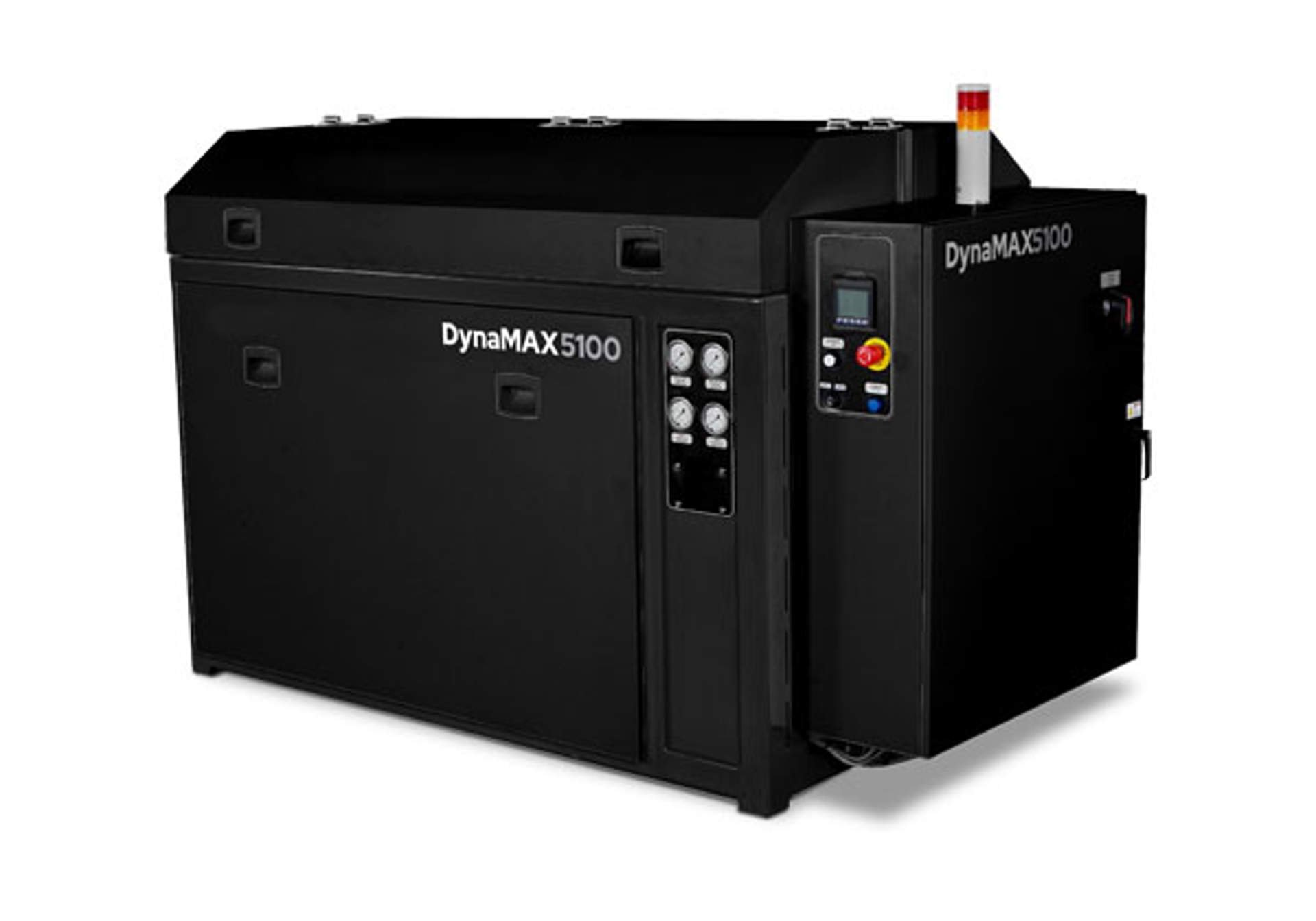

DynaMAX 5100/5150 dual intensifier waterjet pumps
Incorporating proprietary Advanced Intensifier Technology™ (AIT), DynaMAX 5100/5150 waterjet pumps are the hardest-working, most cost-effective waterjet pumps in the world. The 5-series dual intensifier pumps are our highest capacity waterjets. They include advanced control and monitoring features, and are engineered to deliver long-life reliability and uncompromised safety for the lowest cost of ownership.
Benefits
Extreme reliability
- Built-in inlet water accumulator increases seal life by supplying constant water flow and pressure to the intensifier
- Stepped water filtration (10, 1, .45 micron) improves water quality and extends seal life
- Innovative piston design minimizes seal wear and improves component life
Maximum energy efficiency
- Totally enclosed force cooled (TEFC) electrical motor
- Tube design
- Standard water modulating valve provides cooling water

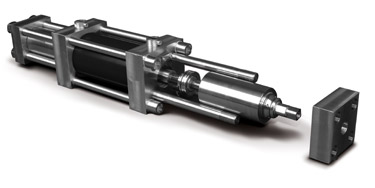

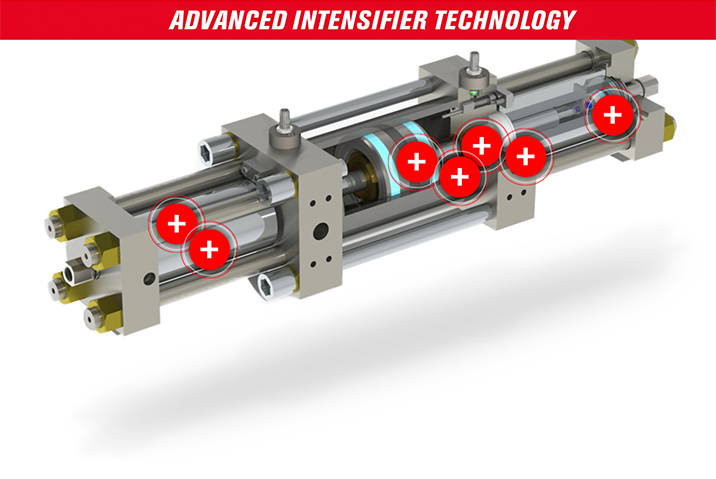

Advanced Intensifier Technology (AIT) reduces maintenance and boosts performance
By rethinking the way the intensifier pump works, we were able to make it work harder, last longer, and require significantly less service time.
-
Sophisticated electronics provide smooth, reliable shifting for optimum cut quality and pump performance
-
Powerful, intuitive software package gives operators all the information they need to maximize uptime
-
Service-friendly design simplifies high-pressure end removal for quick seal maintenance
-
Check valve utilizes a screwless, low-pressure poppet design that enables quick evaluation of key contact surfaces and allows faster routine servicing
Specifications
View the product brochure under the Resources section for the full specifications.
| DynaMAX 5100 | DynaMAX 5150 | |||
| 50 Hz | 60 Hz | 50 Hz | 60 Hz | |
| GENERAL | ||||
| Maximum output flow | 2.1 gpm (7.95 lpm) | 2.2 gpm (8.33 lpm) | 3.0 gpm (11.36 lpm) | 3.2 gpm (12.11 lpm) |
| Maximum orifice | 0.020″ (0.508 mm) | 0.021″ (0.533 mm) | 0.024″ (0.610 mm) | 0.025″ (0.635 mm) |
| Continuous output pressure | Adjustable to 60,000 psi (4137 bar) | |||
| Intensifier configuration | Dual | |||
| Pressure control | Electronic proportional | |||
| Bleed-down valve | Hydraulic | |||
| PUMP POWER |
||||
| Motor Power | 100hp (74.6 kW) | 150hp (111.9 kW) | ||
| Voltage | 400 V | 460 V | 400 V | 460 V |
| Full load | 138 A | 117.5 A | 204 A | 173.4 A |
| Main breaker | 150 A | 225 A | ||
| Soft start | True soft start | |||
| PHYSICAL | ||||
| Overall width | 45″ (1143 mm) | 55″ (1397 mm) | ||
| Overall length | 86″ (2184 mm) | 81″ (2057 mm) | ||
| Overall height | 56″ (1422 mm) | 56″ (1422 mm) | ||
| Approximate operating weight | 4150 lb (1882 kg) | 6100 lb (2767 kg) | ||
| OPTIONS | ||||
| External air-over-oil cooling | Optional | Optional | ||
| Chiller for oil cooling | Optional | Optional | ||
| Water isolation valves | Optional | Standard | ||
Operating data
Orifice combinations supported by the DynaMAX 5100/5150 pumps
DynaMAX 5100
| Orifice size | in (mm) |
|---|---|
| 1 orifice | 0.020 (0.51) |
| 2 orifices | 0.014 (0.36) |
| 3 orifices | 0.011 (0.28) |
| 4 orifices | 0.010 (0.25) |
| 5 orifices | 0.009 (0.23) |
| 6 orifices | 0.008 (0.20) |
DynaMAX 5150
| Orifice size | in (mm) |
|---|---|
| 1 orifice | 0.024 (0.61) |
| 2 orifices | 0.017 (0.43) |
| 3 orifices | 0.014 (0.36) |
| 4 orifices | 0.012 (0.30) |
| 5 orifices | 0.011 (0.28) |
| 6 orifices | 0.010 (0.25) |
Nozzle and Orifice Combinations
| Orifice | Nozzle | Abrasive (lb/min) | Abrasive mesh |
|---|---|---|---|
| 0.007 | 0.020 | 0.25 | 120 - 220 |
| 0.009 | 0.030 | 0.4 - 0.6 | 80 - 120 |
| 0.010 | 0.030 | 0.5 - 0.75 | 80 - 120 |
| 0.013 | 0.040 | 1.0 - 1.25 | 60 - 80 |
| 0.014 | 0.040 | 1.1 - 1.35 | 60 - 80 |
| 0.015 | 0.040 | 1.25 - 1.5 | 60 - 80 |
| 0.016 | 0.040 | 1.3 - 1.5 | 60 - 80 |
Typical combinations by pump size
| HP | Qty heads | Orifice/Nozzle |
|---|---|---|
| 100 | 2 | 0.014/0.040 |
| 100 | 4 | 0.010/0.030 |
| 150 | 2 | 0.017/0.045 |
| 150 | 3 | 0.014/0.040 |
| 150 | 6 | 0.010/0.030 |
Power vs. flow for DynaMAX waterjet pumps
| Model | Power | Pressure | Max. output flow | Max. orifice size | ||||
|---|---|---|---|---|---|---|---|---|
| hp | kW | psi | bar | GPM | L/min | in | mm | |
| 100D | 100 | 74 | 60,000 | 4137 | 2.10 | 7.95 | 0.020 | 0.51 |
| 150D | 150 | 110 | 60,000 | 4137 | 3.00 | 11.40 | 0.024 | 0.61 |
Resources
DynaMAX 5-series dual intensifier waterjet pumps
PDF (2.62MB)
